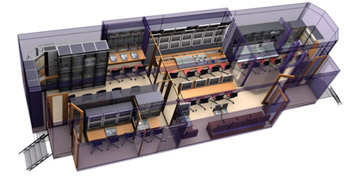

AMP OB Van 11
Unashamedly ambitious
A style of life!
20 SONY HDC 1500 cameras
10 digital or analogue VTRs
8 6-channel video servers (or 8 recorders)
Specifications
VOLVO 38 t
Lengths : semi-trailer: 13.90 m with truck tractor: 16.50 m
Widths : with all extensions open: 5.46 m | with left extension closed: 4.75 m I with left and right extensions closed: 3.89 m I with all extensions closed : 2.50 m
Height : 4.00 m
Registration numbers : Tractor 248 YH 85 | Trailer 4855 YH 85
Power : 2 x 380 V three-phase with earth and neutral 63 A (2 Marechal 63 A)
Support
Type : VOLVO 38 t
Total length : 16.50 m
Width : 2.55 m
Height : 4.00 m
Registration numbers : trailer : 248 YH 85 | tractor: 9589 YG 85
Video
Video mixer
- SONY MVS 8000g digital HD / SD:
- 68 inputs / 48 outputs
- 4 M/E with 8 linear keyers
- 1 main mixing desk 4 M/E, 32 buttons
- 1 secondary mixing desk 2 M/E, 16 buttons
- Library of still or live images, 8 channel
- Dual-channel effects generator 3D SONY MVE
- Internal 16-channel DVE (picture in picture)
Cameras
- 20 Sony HDC 1500 cameras, CCU connections with fibre optics or Triax
Recording / Playback
- 10 analogue or digital video recorders
- 8 6-channel servers (or 8 VCRs)
- Spaces for 8 slow-motion operators
Grids
- 252 x 384 SONY HD SDI / SD SDI
Monitoring
- LCD 24" SD-SDI / BVM 24" LCD HD-SDI
- Mosaic image systems
- BVM JVC 16"
Video Peripherals
- Writing generator, dual channel SD/HD
- Multi-Format synchronisers
- Embedders / disembedders
- Down-converters / Up-converters
- Cross conversion
- 4 satellite demodulator receptions and UHF
- Digital measurement WFM HD 7000 Series
Audio
Audio Mixing Desk
- STUDER Vista 8 digital:
- 52 faders
- 20 mic/line inputs + 16 line inputs
- 2 StageBox 32 input mic/line
- + 8 lines, fibre optic links
- Madi and Ethersound interfaces
- 2 x Yamaha digital DM 1000:
- 16 faders
- 16 mic inputs / 8 AES inputs-outputs
- Ethersound interface
Grids
- 184 x 184 Internal AES STUDER VISTA 8 mixing desk
Monitoring
- Multi-channel sound monitor Genelec 5.1 in video production unit
- Multi-channel sound monitor DYNAUDIO 5.1 in sound production unit
- Acoustic correction with Trinnov processor in sound production unit
- Monitoring WHOLE/FOSTEX
Audio Peripherals
- Coding / decoding DOLBY E / AUDIO TOOLS
- Digital audio workstation on PC 8 channels
- Effects processing with TC ELECTRONIC M6000
- Finalizeur TC ELECTRONIC DB 8
Intercom
- RIEDEL matrix 120 x 120
- 6 networks 2 interfaced RTS wires 6 channels
- 2 telephone hybrids
- 4 ISDN and IP codecs
- 2 walkie-talkie bases (technical)
- 1 permanent broadcast base
- 1 base 4 wire RF OVERLINE 5 directions
- RIEDEL commentator desks
- RF headset monitor
