AMP OB Van 6

Car 6 vignette
Perfectly Complete
Maximum performance, minimum space !

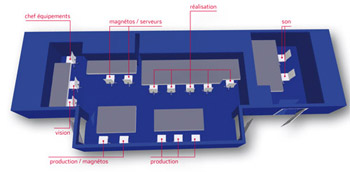

AMP-CAR-6-big

12 digital SONY HSC 300 cameras
7 digital VTRs
3 6-channel video servers (or 3 recorders)

Specifications

VOLVO FH 12 19 t

Length : 11,50 m
Width :
fully expanded : 3,60 m
fully closed : 2,50 m
Heigth : 3,90 m
Registration : 5784 TY 85
Power : 380 V tri with 63 A neutral (P17 63 A outlet)

Support Van

Type : VOLVO FH 12
Registration : 6620 TZ 85
Length : 10,80 m
with tailboard : 12,50 m
Width : 2,55 m
Heigth : 3,97 m




Video

Video Mixer

  • SONY MVS 8000g SF digital
    • 34 inputs / 24 outputs
    • 2,5 M/E with 8 linear keys + chroma key & assignable brightness
  • Library of still or live images, 8 channels
  • 3 M/E desk, 24 direct access
  • SONY MVE 8000a 4 channel effec
  • Internal 8-channel DVE (picture in picture)

Cameras

  • 12 SONY HSC 300 cameras

Recording / Playback

  • 7 analogue or digital video recorders
  • 3 6-channel servers (or 3 VTRs)
  • Spaces for 4 slow-motion operators

Grids

  • 144 x 192 digital SONY HD/SD

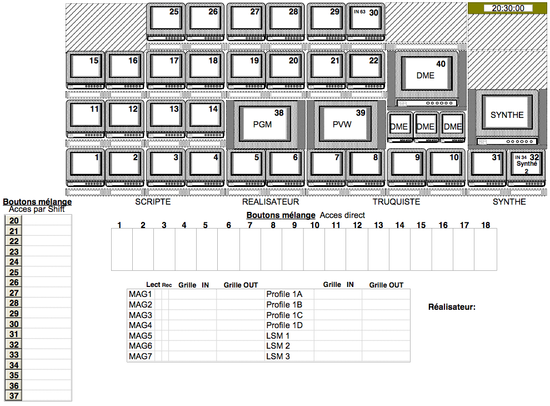

Monitoring

  • SONY BVM 17" and 24" OLED HD/SD
  • Mosaic image systems

Video Device

  • Writing generator, dual-channel CHYRON
  • SNELL & WILCOX synchronisers
  • SNELL Embedders / Disembedders
  • SONY / SNELL Down-converters / up-converters
  • 4 satellite demodulator receptions and UHF
  • Digital measurement WFM 601

Audio

Audio Mixing Desk

  • STUDER VISTA 5 Digital :
    • 42 faders
    • 16 inputs mic/line + 12 inputs line
    • 1 stagebox 40 mics inputs/line + 8 outputs line, fiber link
    • MADI Interfaces for multirack recording

Grids

  • 54 x 54 AES internal console STUDER VISTA 5

Monitoring

  • GENELEC 1030 A Sound monitor
  • FOSTEX / RTS Monitoring
  • Multi-channel sound monitor 5.1 in sound production

Audio Device

  • DOLBY SURROUND coding and multi-channel sound monitor
  • Effects : reverb and delay
  • Digital audio workstation on PC for 4 channels

Set of microphone


Intercom

  • Matrix RTS/TELEX Adams CS 48 x 48
  • 2-wire RTS 6-channel interfaced system
  • 2 hybrid telephones
  • 4 RNIS codecs
  • 2 walkie-talkies network (technical)
  • 1 4-wire RF PASTEGA 1 direction
  • RF headset monitor
  • 3 PUPCO 5 directions commentator desks




The AMP VISUAL TV Group provides technical services for TV filming in outside locations (video-mobile resources) or in studios. As a specialist in High Definition filming, RF broadcasting and 3D filming, the Group is acknowledged for its expertise in the fields of sports, live shows, reports, special operations as well as variety, games or entertainment shows.
