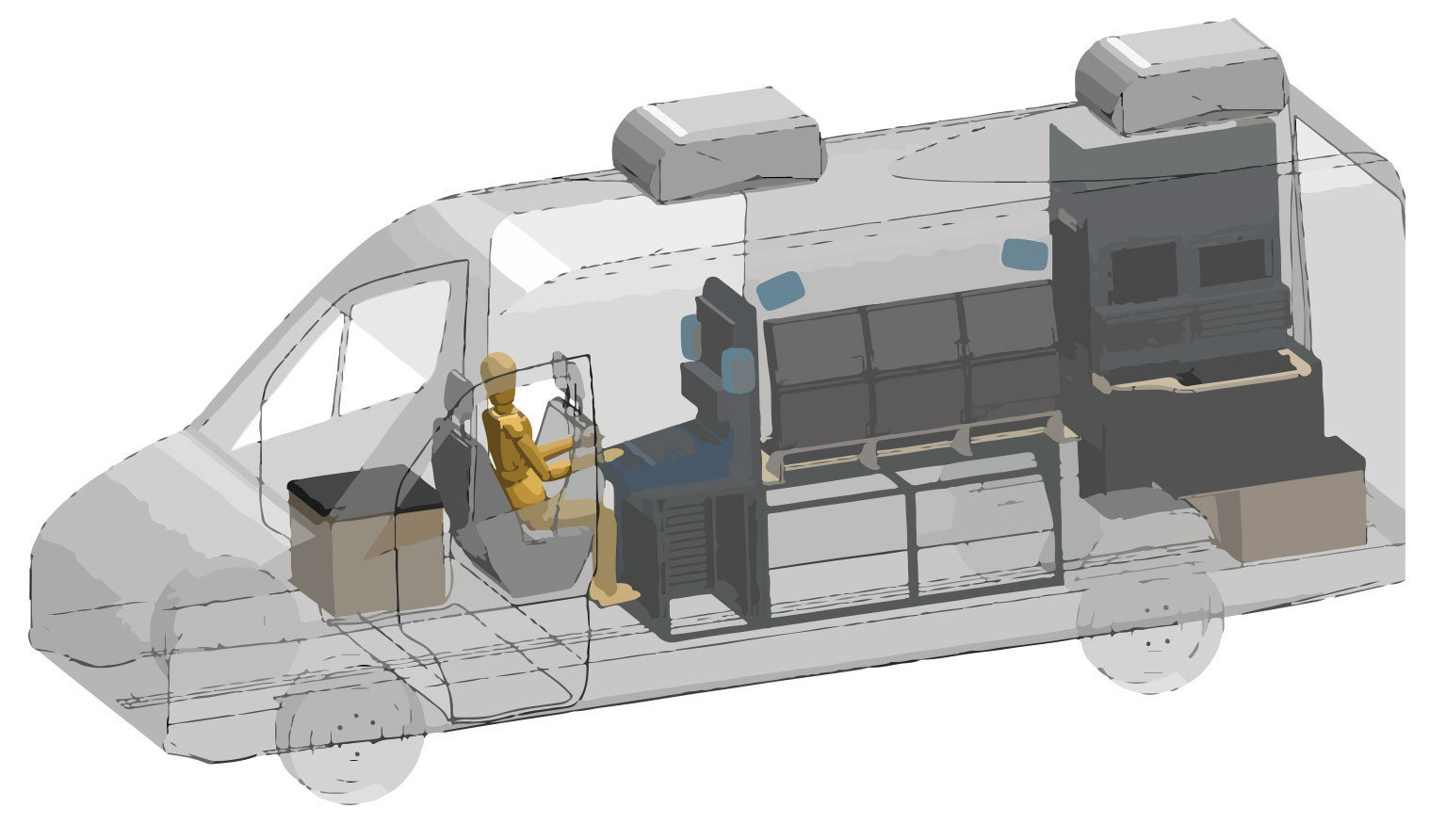

AMP OB Van 7
Perfectly mobile
Can go everywhere, quickly and efficiently !
5 digital SONY BVP E10 cameras
4 digital or analogue VTRs
1 6-channel video servers (or 1 recorder)
Specifications
MERCEDES Sprinter 321D 3,5 t
Length : 6,60 m
Width : 2,00 m
Heigth : 3,10 m
Registration : 1616 VH 85
Power : 220 V 32 A tri (P17 32 A outlet)
Support Van
Type : MERCEDES Sprinter 321D 3,5 t
Registration : 7379 WN 85
Video
Video Mixer
- SONY DVS 2000 digital :
- 16 inputs
- 1 M/E with 2 linear keys
- 3 auxiliaries
- 1 DSK
Cameras
- 5 SONY BVP E10 cameras
Recording / Playback
- 4 analogue or digital video recorders
- 1 6-channel LSM server (or 1 VCR)
Grids
- 32 x 32 digital SONY
- 32 x 32 analogue SONY

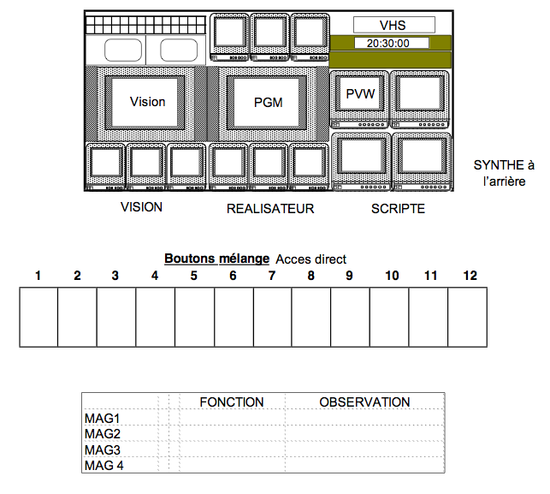

Monitoring
- SONY 6'' BVM 14'' SD/SDI
Video Device
- Writing generator, dual-channel CHYRON
- SNELL & WILCOX synchronisers
- Editing control unit
- Satellite demodulator reception and UHF
- Digital measurement WFW 601 analogue WFM 1741
Audio
Audio Mixing Desk
- YAMAHA 02R digital :
- 24 inputs
- 8 groups
- 6 auxiliaries
- 1 stereo output
Monitoring
- Sound monitor GENELEC 1029A
Audio Device
- Minidisc player/recorder
- Effects : reverb and delay
Set of microphone
Intercom
- Matrix RTS/TELEX Zeus 24 x 24
- 2-wire RTS 3 channels interfaced system
- 2 hybrid telephones
- RNIS codecs
- 1 walkie-talkie network (technical)
- 1 4-wire RF PASTEGA 1 direction
- 2 PUPCO 5 directions commentator desks
- RF headset monitor
