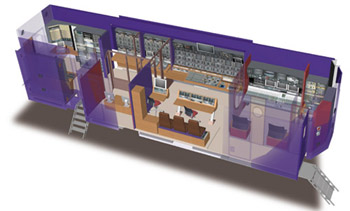

AMP OB Van 8
Completly Intelligent
Its limits go as far as your imagination !
16 digital SONY HDC 1500 cameras
16 digital or analogue VTRs
8 6-channel video servers (or 8 recorders)
Specifications
VOLVO 38 t
Lengths : semi : 14,00 m with towing vehicle : 16,50 m
Widths : fully expanded : 4,55 m | one closed expanded : 3,75 m | fully closed : 2,50m
Height : 4,00 m
Registrations : ob van : 4499 WK 85
towing vehicle : 6916 WJ 85
Power : 2 x 380 V tri with 63 A neutral (1 Marechal 63 A)
Support Van
Type : VOLVO 38 t
Lengths : semi : 13,50 m I with towing vehicle : 16,50 m I tail-board opened: 18,00 m
Widths : 2,55 m
Height : 4,00 m
Registrations : ob van : 4498 WK 85
towing vehicle : 6904 WJ 85
Video
Video Mixer
- SONY MVS 8000a digital HD/SD :
- 51 inputs / 32 outputs
- 4 M/E with 16 linear keys
- Library of still or live images, 8 channel
- Colorimetric controller
- 1 main mixing desk 4M/E 32 buttons
- 1 secondary mixing desk 2M/E 12 buttons (control room 2)
- Effects generator, dual-channel SONY MVE 9000
Cameras
- 16 SONY HDC 1500 fibre or triax CU connections cameras
Recording / Playback
- 16 analogue or digital video recorders
- 8 6-channel servers (or 8 VCRs)
- Spaces for 8 slow-motion operators pour 8 opérateurs ralentis
Grids
- 64 x 64 HD SONY
- 96 x 128 SONY digital
- 96 x 128 SONY analogue
Monitoring
- SONY 9" SD-SDI, BVM 14" and 20" HD-SDI
- UMD source display
Video Device
- Writing generator, dual-channel SD/HD CHYRON
- SNELL & WILCOX synchroniser
- SNELL & WILCOX Embedders / disembedder
- Down-converters / up converters SONY
- SONY BVE 2000 Editing control unit
- 4 satellite demodulator receptions and UHF
- Digital measurement WFM 601 and WFM 700
Audio
Audio Mixing Desk
- STUDER D950 analogue :
- 64 mic/line inputs
- 8 groups
- 8 mono auxiliaries mono and 4 stereo auxiliaries
- 12 mono inputs
- Prémix YAMAHA O2R96 :
- 24 line inputs
- 16 mic inputs
- 8 AES inputs/outputs
- 8 groups
- 8 auxiliaries
- 1 stereo input
Grids
- 80 x 80 AES computing of the internal consol with the SONY internal router
- 64 x 64 LEITCH analogue
Monitoring
- Sound monitor GENELEC 1031A
- Monitoring RTS FOSTEX
- Multi-channel sound monitor 5.1 (sound production unit)
Audio Device
- DOLBY E Coding/Decoding
- AUDIO TOOLS
- Effects processing with LEXICON 300L : reverb and delay
- Digital audio workstation on PC for 8 channels
Intercom
- Matrix RTS/TELEX Adams 80 x 80
- 2-wire RTS 4-channel interfaced system
- 2 hybrid telephones
- 5 RNIS codecs
- 2 walkie-talkie networks (technical)
- 1 constant broadcasting panel
- 1 4-wire RF PASTEGA 2 directions
- PUPCO 5 directions commentator desks
- RF headset monitor
