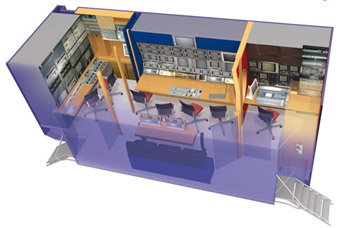

AMP OB Van 9
Perfectly smart
It thinks big !
8 SONY HDC 950 cameras
6 digital or analogue VTRs
2 6-channel video servers (or 2 recorders)
Specifications
VOLVO 18 t
Length : 9,00 m
Widths :
extension opened : 3,35 m
extension closed : 2,50 m
Heigth : 4,00 m
Registration : 7585 WY 85
Power : 1 x 380 V tri with 63 A neutral (P17 62 A outlet)
Support van
Type : VOLVO 18 t
Length : 9,50 m
tailboard opened : 12,50 m
Width : 2,55 m
Heigth : 3,90 m
Registration : 1694 XB 85
Video
Video Mixer
- SONY MVS 8000a SF digital HD/SD :
- 34 inputs / 24 outputs
- 2 M/E, 16 direct access
- 8 linear keys + chroma key
- assignable brightness
- Library of still or live images, 8 channel
- SONY MVE 9000 effects generator
Cameras
- 8 SONY HDC 950 HD/SD fibre or triax CU connections cameras
Recording / Playback
- 6 analogue or digital video recorders
- 2 6-channel servers (or 2 VTRs)
- Spaces for 2 slow-motion operators
Grids
- 96 x 128 SONY HD SDI / SD SDI / analogue

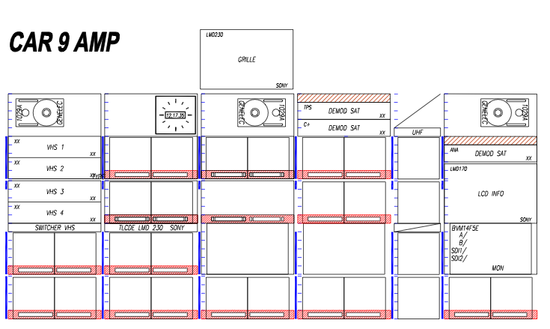

Monitoring
- SONY 9" SD-SDI et BVM 14" HD-SDI
- UMD source display
Video Device
- Writing generator, dual-channel SD/HD CHYRON
- SNELL & WILCOX synchronisers
- SNELL & WILCOX embedders / disembedders
- SONY down-converters / up converters
- Cross conversion
- SONY BVE 2000 Editing control unit
Audio
Audio Mixing Desk
- YAMAHA DM 2000 :
- 24 mic/line inputs
- 16 analogue line inputs
- 24 AES inputs/outputs
- 1 stereo outputs
- 8 groups
- 12 auxiliaries
- 4 matrixs
Grids
- 64 x 64 LEITCH analogue
Monitoring
- GENELEC 1029A sound monitor
- Monitoring WHOLER / RTS / FOSTEX
- Multi-channel sound monitor 5.1
Audio Device
- DOLBY E / AUDIO TOOLS coding/decoding
- Reverb and delay effects
- Digital audio workstation for PC on 4 channels
Intercom
- RTS/TELEX Adams CS 40 x 40 matrix
- 4-wire RTS 4-channel interfaced
- 2 hybrid telephones
- 4 RNIS codecs
- 2 walkie-talkie network (technical)
- 1 4-wire RF PASTEGA 2 directions
- GLENDSOUND 4 directions commentator desks
- RF headset monitor
