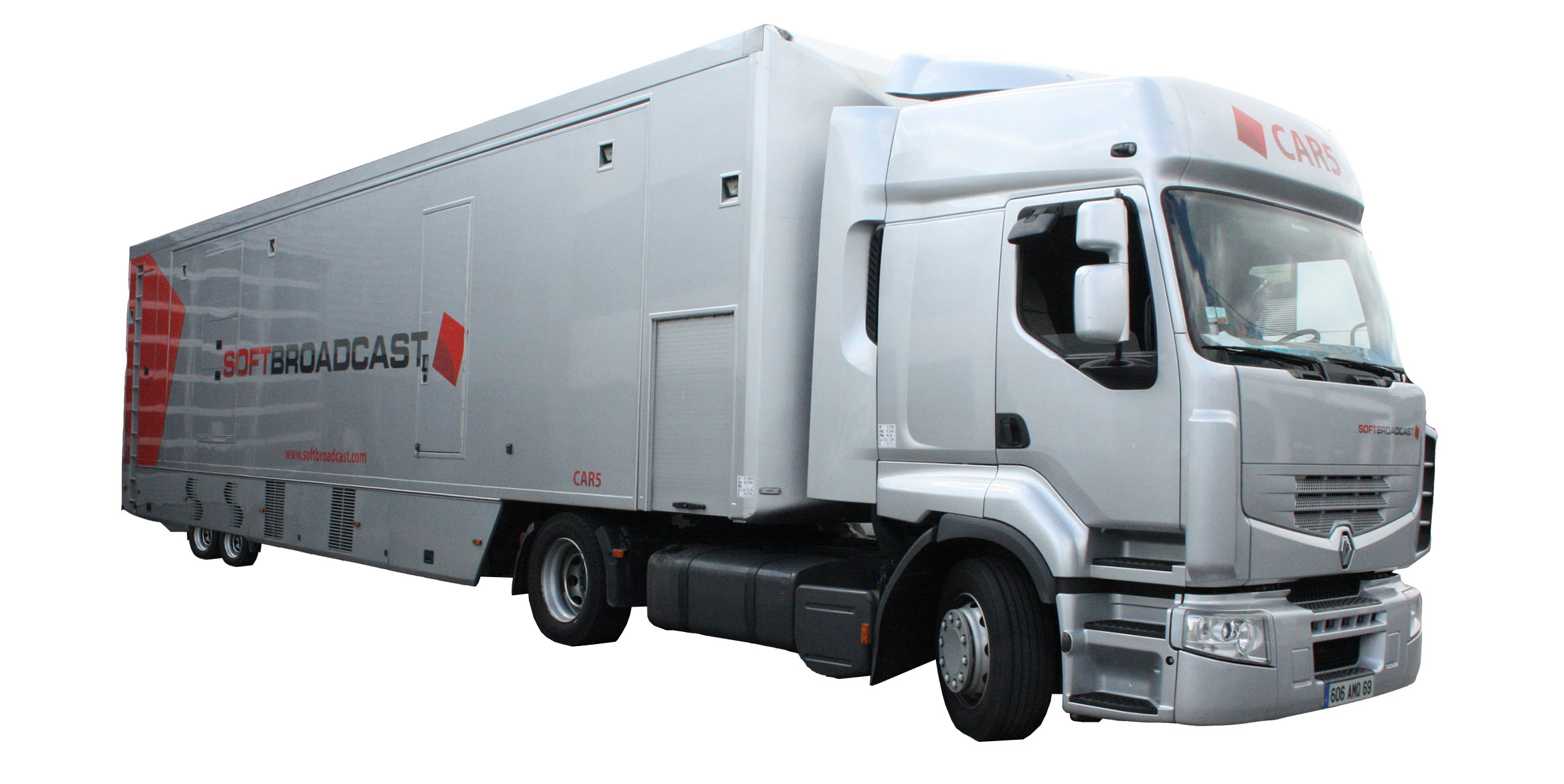

SOFT BROADCAST OB Van 5
So ingenious
Precision down to the finest details !
14 HD SONY HDC 1500 digital cameras
12-position VTRs
STUDER VISTA 8 sound monitor
Specifications
OB Van
26 t
Length : semi : 14,00 m with towing : 17,00 m
Width :
fully expanded : 5,00 m
one opened extension : 4,00 m
fully closed : 2,55 m
Height : 4,00 m
Registration : control room : 606 AMQ 69, towing : 222 APA 69
Power: 380 V tri, neutral 63 A (2 Marechal 63A outlets) ou 1 x 125A
Consumption : 100 KVA
Support Van
Porteur 19 t
Registration : 41 ANX 69
Video
Video Mixer
- SNELL & WILCOX KAHUNA SD/HD
- 64 inputs
- 4 M/E (M/E coupled), 35 direct access
- 16 auxiliaries
- 4 M/E linear keys including 1 chroma key per key
- 1 ramcoders (1'15'' SD and 15'' HD)
- Internal effects generator
- Panel 1 M/E KAHUNA for double production
Cameras
- 6 to 14 HD SONY HDC 1500 cameras
- CANON HD 17x-22x-72x-86x-GA lenses
Recording / Playback
- 10 analogue or digital video recorders
- 12 positions
- 5 6-channel servers
- Spaces for 5 slow-motion operators
Grids
- 96 x 96 PROBEL HD
- 96 x 258 PROBEL SD
Monitoring
- SONY 9''/14'' PAL SDI
- UMD TSL source displays
- Red/green displays
Video Device
- Writing generator, dual-channel Duet SD
- SNELL & WILCOX Converters + distribution
- SNELL & WILCOX synchronisers
- Digital measurement TEKTRONIC WF 601
Audio
Audio Mixing Desk
- STUDER Vista 8 digital
- 52 faders
- stage box
- optical fibre
Grids
- Studer 168 x 168
Monitoring
- 5.1 Dynaudio
Audio Device
- CD,K7, DAT sources
- Effects processing with TC Electronik M 2000 finalizer
- Digital audio workstation for PC on 8 channels
Set of microphone
Intercom
- 2-wire RTS intercom 9-channel system
- 4-wire TELEX ADAM 88x88
- 2 STUDER telephone hybrids
- PROSPECT 12x12 program unit
- MOTOROLA walkie-talkie network (technical)
- AETA Scoop codec
