VISUAL TV OB Van C

Car C vignette
The experience
It made everything, it will make everything !

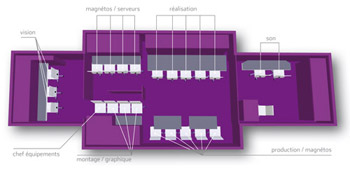

Visualtv-Car-C-big

18 LDK 500 digital cameras
10 all-format recorders
8 6-channel video servers (or 8 recorders)



Specifications

VOLVO 38 t
Lengths :
semi : 13.90 m
with towing vehicle : 16.50 m
Widths :
fully expanded : 4.50 m
fully closed : 2.50 m
Height : 4.00 m
Registrations :
OB van : AH-095-ZD
towing vehicle : 792 BLV 44
Power : 380 V Tri,
with neutral (2 Marechal 63 A)
Consumption : 70 KVA

Support van
VOLVO FH12
Registrations :
towing vehicle : 534 BLW 44
semi : 585 AFK 44

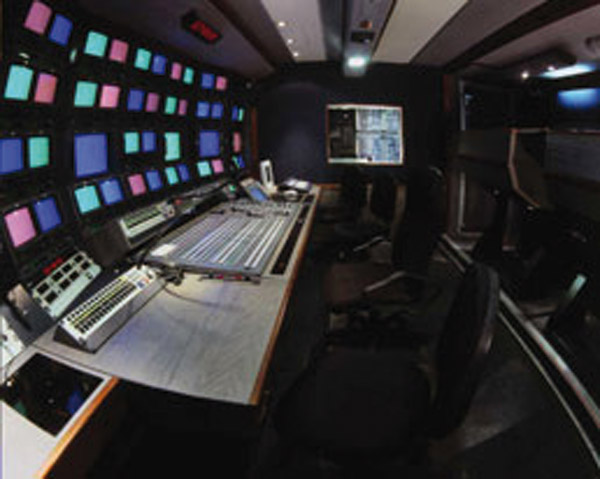

car-c

Video

Video Mixer

  • BTS DD35 Xtend digital
    • 48 inputs
    • 4 M/E (M/E coupled) 32 direct access
    • 12 auxiliaries
    • 12 keys including 2 chroma keys
    • 4 ramcorders 2 Dvx 2D
  • Dual-channel effects generator 3D PINNACLE DV Extreme

Cameras

  • 18 LDK 500 cameras

Recording / Playback

  • 10 analogue or digital video recorders
  • 8 6-channel servers (or 8 VCRs)
  • Spaces for 8 slow-motion operators

Grids

  • 64 x 64 BTS SDI
  • 64 x 96 BTS PAL

Monitoring

  • SONY 9"/14" PAL SDI
  • UMD source display
  • Red/Green source displays

Video Device

  • Writing generator, dual channel SD
  • THOMSON converters + distribution
  • SNELL & WILCOX synchronisers
  • Digital measurement TEKTRONIC WF 601

Audio

Audio Mixing Desk

  • MIDAS Heritage 3000 digital
    • 48 inputs
    • 24 auxiliaries
    • 8 matrix

Grids

  • 96 x 64 BTS Vénus

Monitoring

  • Sound monitor GENELEC

Audio Device

  • Dynamic : limiters/ compressors
  • Effects : delay / reverb
  • Digital audio workstation on PC 8 channels

Set of microphone

Intercom

  • 4-wire TELEX ADAM CS (64 x 64) digital
  • 2-wire RTS 6-channel interfaced system
  • Mélangeur d'ordres PROSPECT 12 x 12
  • MOTOROLA walkie-talkie network (technical)
  • 2 hybrid telephones
  • AETA Scoop codecs






The AMP VISUAL TV Group provides technical services for TV filming in outside locations (video-mobile resources) or in studios. As a specialist in High Definition filming, RF broadcasting and 3D filming, the Group is acknowledged for its expertise in the fields of sports, live shows, reports, special operations as well as variety, games or entertainment shows.
