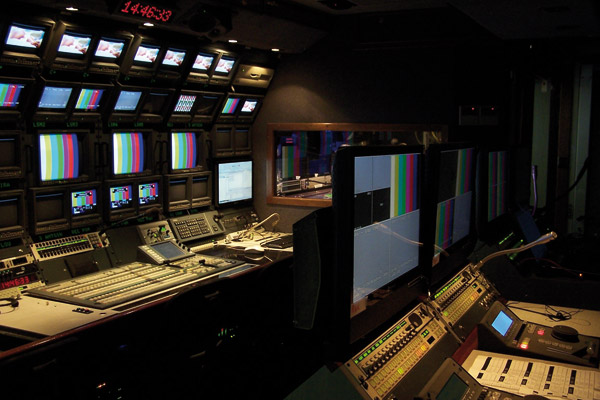

VISUAL TV OB Van G
Compact and powerful
When you want, where you want !
10 THOMSON LDK 500 cameras
6 digital or analogue VTRs
3 6-channel video servers (or 3 recorders)
Specifications
VOLVO 19 t
Length : 10.50 m
Widths :
fully expanded : 3.30 m
fully closed : 2.50 m
Height : 4.00 m
Registration : 912 FXA 92
Power : 380 V Tri with neutral
63 A (Prise P17 32 A)
Consumption : 45 KVA
Support van
Type : VOLVO FM7 290
Registration : 901 FXA 92
Video
Video Mixer
- BTS DD35 xtend digital :
- 48 inputs
- 4 M/E (M/E coupled) 32 buttons
- 10 auxiliaries
- 12 linear keys including 2 chroma keys
- 4 ramcorders, 2Dvx 2D
- Dual-channel effects generator PINNACLE DV Extreme
Cameras
- 10 THOMSON LDK 500 cameras
Recording / Playback
- 6 analogue or digital video recorders
- 3 6-channel servers
- Spaces for 3 slow-motion operators
Grids
- 64 x 64 BTS SDI
- 64 x 64 BTS PAL
Monitoring
- SONY 9"/14" PAL SDI
- UMD source display
- Red/Green source displays
Video device
- Dual-channel writing generator SD
- ART converters + distribution
- SNELL & WILCOX synchronisers
- Digital measurement TEKTRONIC WF 601
Audio
Audio Mixing Desk
- STUDER VISTA 5
- 42 faders
- 16 inputs mic/line + 16 inputs line
- 40 mono digital outputs
- 8 inputs
- 8 AES outputs
- 1 stagebox 40 mic inputs/line + 16 outputs line fiber link
- MADI interfaces for multirack recording
Grids
- 64 x 64 BTS Vénus
Monitoring
- Sound monitor GENELEC
Audio Device
- Dynamic : DBX limiters / compressors
- Effects : delay / reverb
- Digital audio workstation on PC 8 channels
Intercom
- 4-wire RTS / TELEX 48 x 48 digital
- 2-wire RTS 6-channel interfaced system
- Prospect 12 x 12 mixer
- MOTOROLA walkie-talkie network (technical)
- 1 telephone hybrid
- AETA Scoop codec
