VISUAL TV The Millenium
20 SONY HDC 1500 cameras
10 digital or analogue VTRs
8 6-channel video servers (or 8 recorders)
Specifications
Volvo FH 12 38 t
Lengths :
semi : 13.90 m
with towing vehicle: 16.50 m
Widths :
fully expanded : 4.50 m
fully closed : 2.50 m
Height : 4.00 m
Registrations :
OB van : AJ-501-FV
Towing vehicle : 795 BLV 44
Power : 380 V Tri
(2 Marechal 63 A)
Support van
Type : Volvo FH 12 38 t
Length : 16.50 m
Width : 2.55 m
Height : 4.00 m
Registrations :
Towing vehicle : 316 BMN 44
Semi : AJ-542-FV
Video

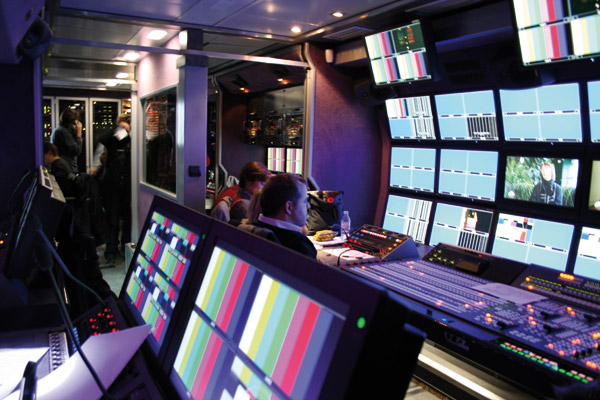

Video Mixer Control Room 1
- Kayak GRASS VALLEY digital SD/HD
- Xtend DD 32 buttons control panel
- 96 inputs / 48 outputs
- 4,5 M/E
- 12 auxiliaries per M/E via Coco
- 20 linear keys including 4 chroma keys
- 8 ramcorders 80s in HD 180s in SD
- 7 internal DVE, 4 external DVE
Video Mixer Control Room 2
- Kayak GRASS VALLEY digital SD/HD
- Kayak DD 24 buttons control panel
- 48 inputs / 24 outputs
- 2,5 M/E
- 12 auxiliaries per M/E via Coco
- 12 linear keys including 2 chroma keys
- 6 ramcorders 80s in HD 180s in SD
- 8 internal DVE
Camras
- 20 SONY HDC 1500 fibre or triax CU connections cameras
Recording / Playback
- 10 analogue or digital video recorders
- 8 6-channel servers (or 8 VCRs)
- Spaces for 8 slow-motion operators
Grids
- 288 x 360 PROBELL Cygnus HD/SD
Monitoring
- LCD 24" SD/HD
- Mosaic image systems
Video Device
- Writing generator, dual-channel SD/HD
- SNELL & WILCOX Multi-format synchronisers
- Embedders / disembedders
- Cross conversion
- HD digital measurement WFM series 7000 et 500
Audio
Audio Mixing Desk
- STUDER VISTA 8 digital :
- 52 faders
- 2 stage boxes 56 mics/ fibre connection / Madi 64-multitrack channels connection
- YAMAHA DM 1000 digital auxiliary, mixing desk
Grids
- 160 x 160 AES STUDER
Monitoring
- Sound control room : 5.1 DYNAUDIO air 15, Air base et Bm6 monitors
- Production control room : 5.1 GENELEC series 8000 monitoring
Périphériques audio
- Effects processing with TC ELECTRONIC M6000
- Digital audio workstation on PC for 64 channels
- Coding/décoding Dolby E, Dolby Prologic coding
Intercom
4-wire digital TELEX Adam 112 x 112 system
2-wire RTS 6-channel system
PROSPECT 12 x 12 program unit
MOTOROLA walkie-talkie network (technical)
2 telephone hybrids
AETA Scoop codecs
