VISUAL TV OB Van B
Crafty

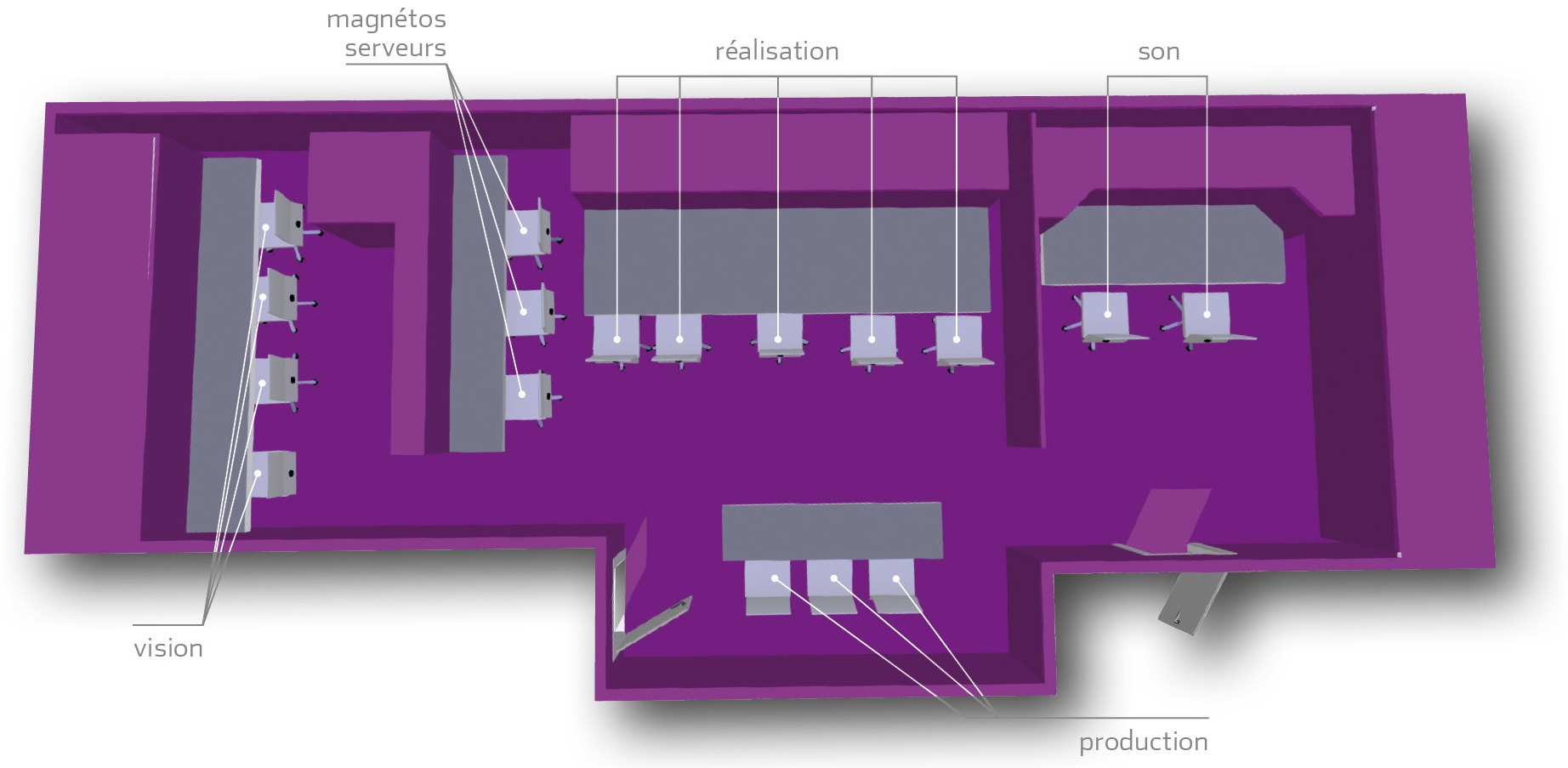

Space is inside, not outside !
16 digital SONY HDC 1500 cameras
16 digital or analogue VTRs
8 6-channel video servers (or 8 recorders)
Specifications
VOLVO 38 t
Lengths :
semi : 13.90 m
with towing vehicle : 16.50 m
Widths :
fully expanded : 3.50 m
fully closed : 2.50 m
Height : 4.00 m
Registrations :
OB van : AH-124-ZD
towing vehicle : 532 BLW 44
Power : 380 V Tri,
with neutral (2 Marechal 63 A)
Consumption : 70 KVA
Support van
IVECO
Registration : 213 AFN 31
Video
Video Mixer
- BTS DD35 xtend digital :
- 48 inputs
- 4 M/E (M/E coupled) 32 buttons
- 10 auxiliaries
- 12 linear keys including 2 chroma keys
- 4 ramcorders, 2Dvx 2D
- Dual-channel effects generator PINNACLE DV Extreme
Cameras
- 12 SONY BVP E30 cameras
Recording / Playback
- 6 analogue or digital video converters
- 5 6-channel (or 5 VTRs)
- Spaces for 5 slow-motion operators
Grids
- 48 x 48 SD BTS SDI
- 48 x 64 PAL BTS PAL
Monitoring
- SONY 9"/14" PAL SDI
- UMD source display
- Red/Green source displays
Video Device
- Writing generator, dual channel SD
- ART converters + distribution
- SNELL & WILCOX syncrhonisers
- Digital measurement TEKTRONIC WF 601
Audio
Audio Mixing Desk
- MIDAS Heritage 3000 digital
- 48 inputs
- 24 groupes
- 8 matrixs
Grids
- 64 x 64 BTS Vénus
Monitoring
- Sound monitor GENELEC
Audio Device
- Dynamic : limiters / compressors
- Effects : delay / reverb
- Digital audio workstation on PC 8 channels
Intercom
- 4-wire CLEARCOM Matrix Plus 3 (50 x 50) digital
- 2-wire CLEARCOM 6-channel
- PROSPECT 12 x 12 mixer
- MOTOROLA walkie-talkie network (technical)
- 2 hybrid telephones
- AETA Scoop codecs
