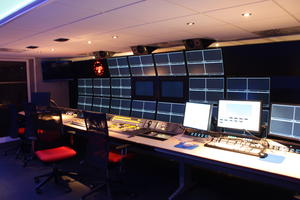

STUDIO GABRIEL - HD Control Room

Video

Video mixer

• SONY MVS 8000g digital HD/SD
  • 34 inputs / 24 outputs
  • 3 M/E with 8 incrustateurs linéaires
  • Library of still or live images 8 channels
  • 1 mixing desk 3 M/E 32 buttons
• SONY MVE 8000a 4-channel effects generator or SONY DME 7000 dual channel

Grids

• 64 x 64 SONY digital video
• 64 x 64 SONY analogue

Monitoring

• HD SDI / SD SDI / PRO-BEL 96 x 192 Multi-standard video
• Controller VSM Studio

Cameras

• 10 SONY HSC 300 cameras including une tête débrochée

Recording

• Until 8 multi format VTRs (*)
• 1 6-channel EVS XT2 server (*)
• 1 4-channel EVS XS server (*)
• Ingest simultanée sur AVID UNITY (*)
• 6 DVD Player/Recorder

Video device

• 1 SD/HD AVID DEKO 1000 dual channel writing generator
• Multi format synchronisers (*)
• Embedders / disembedders (*)
• Down-converters / Up-converters
• Cross conversion (*)
• Satellite demodulator reception
• HD WFM serie 5000 RON digital measurement

Audio

Audio mixing desk

• STUDER VISTA 8
  • 52 faders
  • 56 MIC / LINE inputs
  • 44 AES inputs
  • 34 analogue outputs
  • 44 AES outputs
•  YAMAHA DM1000
  • 16 faders
  • + 16 IN / OUT AES
  • + 8 IN / OUT analogue

Grids

• Internal VISTA 8 STUDER 144 x 128 AES mixing desk

Monitoring

• Multi-channel sound monitor DYNAUDIO in sound and video production
• WHOLER + FOSTEX monitoring

Audio device

• Coding/decoding DOLBY E / AUDIO TOOLS
• CD / DAT / MD Player and audio server
• Multi-effect processing with TC-ELECTRONIC M 6000 + M 3000
• Digital video workstation on PC SOUNDFORGE
• Finalizer Junger B41

Set of microphone

16 HF SENNHEISER microphones + kit musique complet(*)

Intercom

• 64 x 64 CLEARCOM matrix
• Networks 2 interfaced RTS wires 6 channels
• 2 hybrid telephones
• 2 RNIS codecs
• 1 MOTOROLA walkie-talkie network (technical)
• 1 double HF OVERLINE network
• HF PHONAK headset monitor

* depending on configuration
